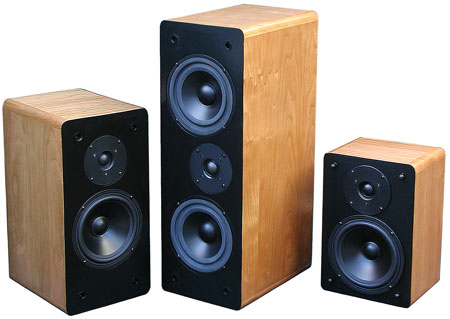

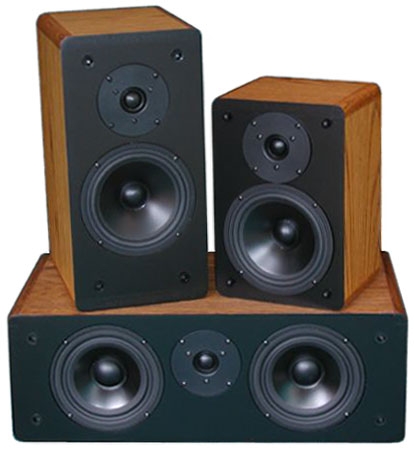

Fritz Audio/Video Home Theater Loudspeakers
All Fritz Audio/video loudspeakers are sonically matched and
are excellent for music & spectacular in Home Theater systems

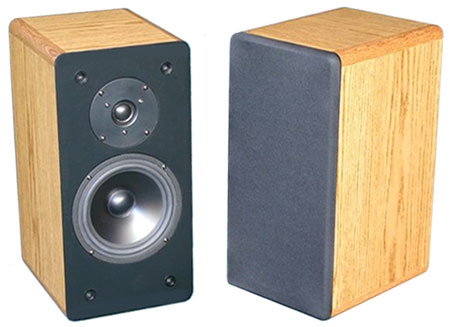

Fritz Monitors
2 Way High-Definition
stand mounted monitor

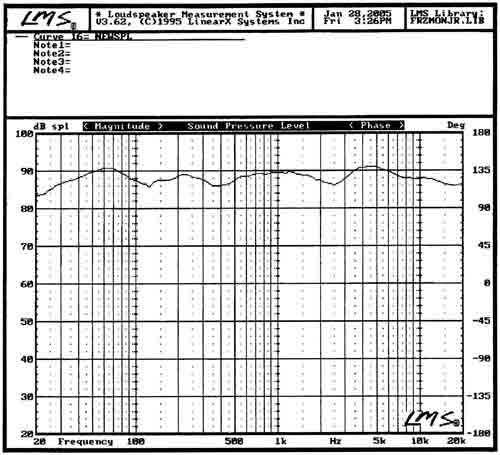

Frequency Response: |
42 Hz to 20 kHz +/- 3 db |
Impedance: |
8 ohms Nominal |
Sensitivity: |
88 dB (at 1 watt, 2.83V, @1 meter) |
Bass/Midrange Driver: |
6 1/2" Mineral-filled Polypropylene composition driver, cast magnesium alloy chassis with large voice & magnet, bass reflex loaded rear port, available sheilded for Home Theater systems |
Tweeter: |
1" double chamber; ferro fluid-cooled fabric dome with liner response, low distortion and wide dispersion |
Crossover: |
Internal, utilizing large, low loss inductors and metalized polypropylene capacitors at 3000 Hz, 12dB tweeter, 6dB woofer |
Dimensions/Weight: |
16H x 8W x 10D, 18lbs. |
Recommended Amplifiers: |
20
to 150 watts, not clipping |

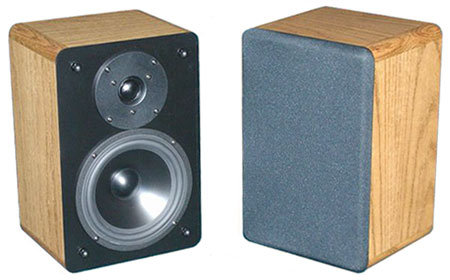

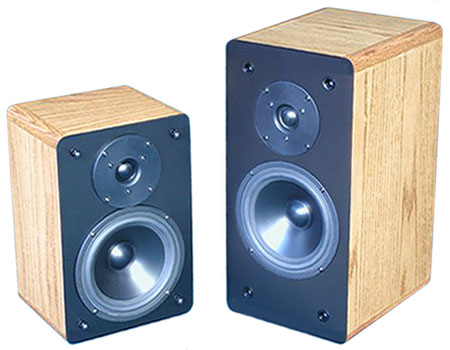

Fritz Jr Monitors
A smaller compact model that has the same high performance
drivers & crossover components that are used in the standard model

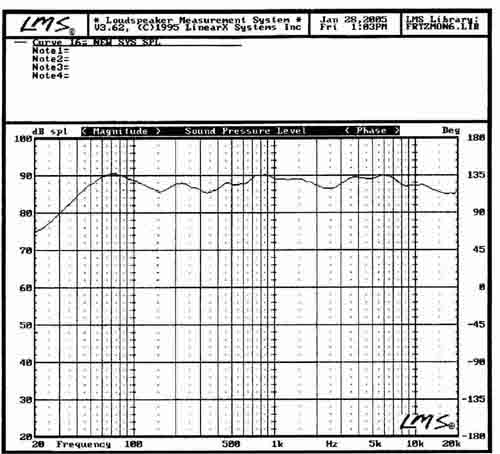

Frequency Response: |
48 Hz to 20 kHz +/- 3 db |
Impedance: |
8 ohms Nominal |
Sensitivity: |
88 dB (at 1 watt, 2.83V, @1 meter) |
Bass/Midrange Driver: |
6 1/2" Mineral-filled Polypropylene composition driver, cast magnesium alloy chassis with large voice & magnet, bass reflex loaded rear port, available sheilded for Home Theater systems |
Tweeter: |
1" double chamber; ferro fluid-cooled fabric dome with liner response, low distortion and wide dispersion |
Crossover: |
Internal, utilizing large, low loss inductors and metalized polypropylene capacitors at 3000 Hz, 12dB tweeter, 6dB woofer |
Dimensions/Weight: |
12H x 8W x 7D, 14lbs. |
Recommended Amplifiers: |
20 to 150 watts, not clipping |

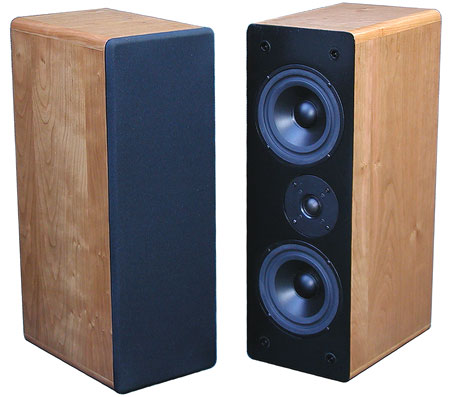

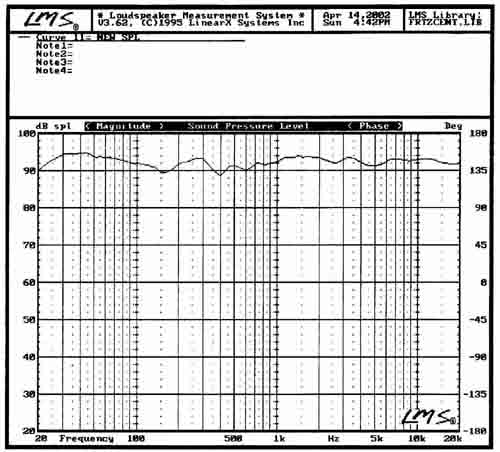

Fritz LCR SYSTEM
Dual 6 1/2 inch 2 way High-Definition vented stand mounted
loudspeakers available shielded for Home Theater systems

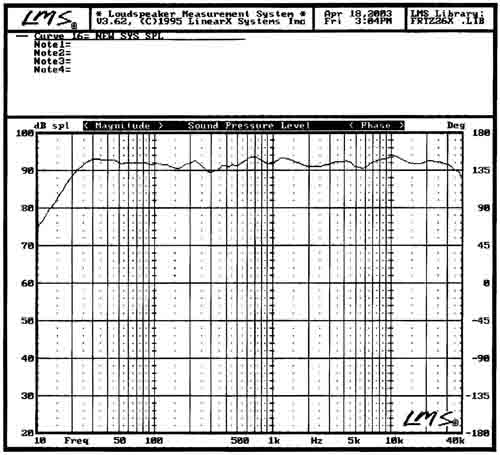

Frequency Response: |
40 Hz to 20 kHz +/- 3 db |
Impedance: |
4 ohms Nominal |
Sensitivity: |
91 dB (at 1 watt, 2.83V, @1 meter) |
Bass/Midrange Driver: |
dual 6 1/2" Mineral-filled Polypropylene composition driver, cast magnesium alloy chassis with large voice & magnet, bass reflex loaded rear port, available sheilded for Home Theater systems |
Tweeter: |
1" double chamber; ferro fluid-cooled fabric dome with liner response, low distortion and wide dispersion |
Crossover: |
Internal, utilizing large, low loss inductors and metalized polypropylene capacitors at 3000 Hz, 12dB tweeter, 6dB woofer |
Dimensions/Weight: |
23H x 8W x 12D, when used as horizonal center channel; 23W x 8H x 12D, 35lbs. (each) |
Recommended Amplifiers: |
25 to 200 Watts RMS, without clipping |
