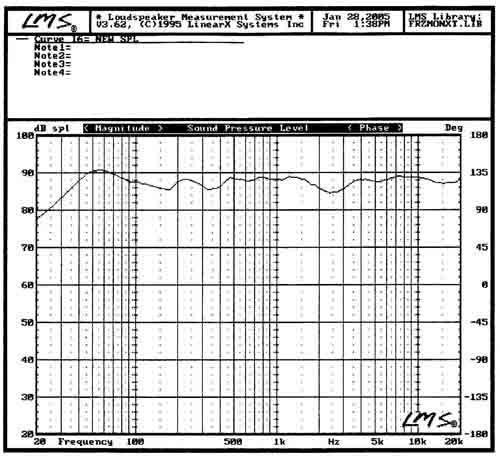

Frequency Response:

42 Hz to 40 kHz +/- 3 db

Impedance:

8 ohms Nominal

Sensitivity:

87.5 dB (at 1 watt, 2.83V, @1 meter)

Bass/Midrange Driver:

7 inch coated paper driver, cast magnesium alloy chassis with large voice & magnet, bass reflex loaded rear port.

Tweeter:

1" ring radiator with dual concentric diaphragm with wave-guide center plug

Crossover:

Series crossover without any capacitors or resistors in the circuit with the tweeter
Acoutic Reality Series Crossovers

Dimensions/Weight:

16" High, 9" Wide, 12" Deep, 29 lbs.

Recommended Amplifiers:

20 to 150 watts
