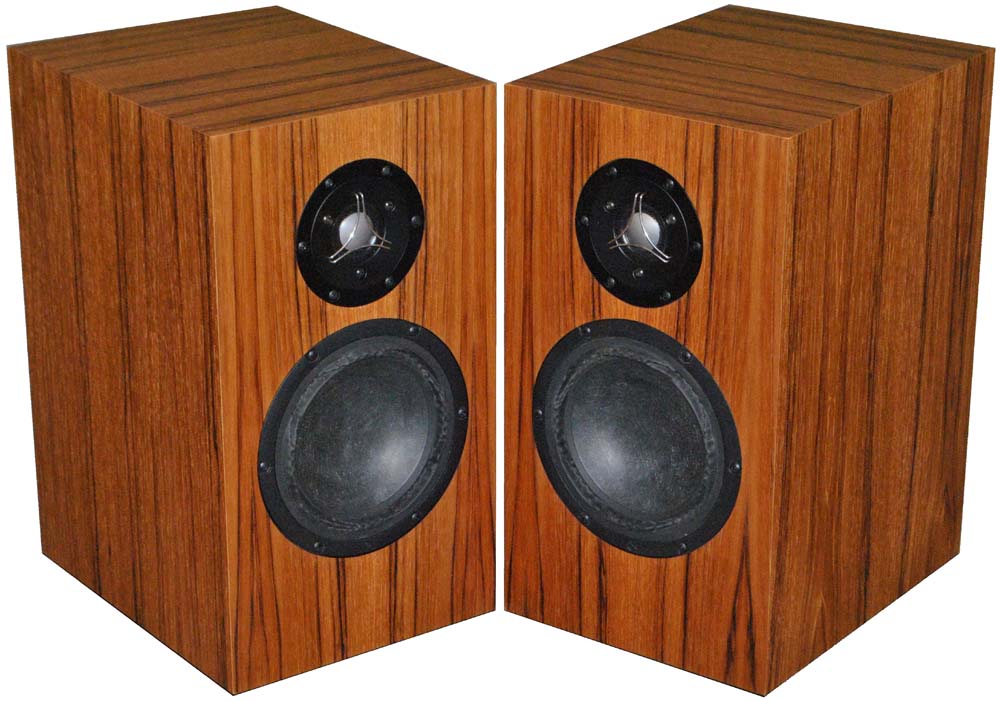

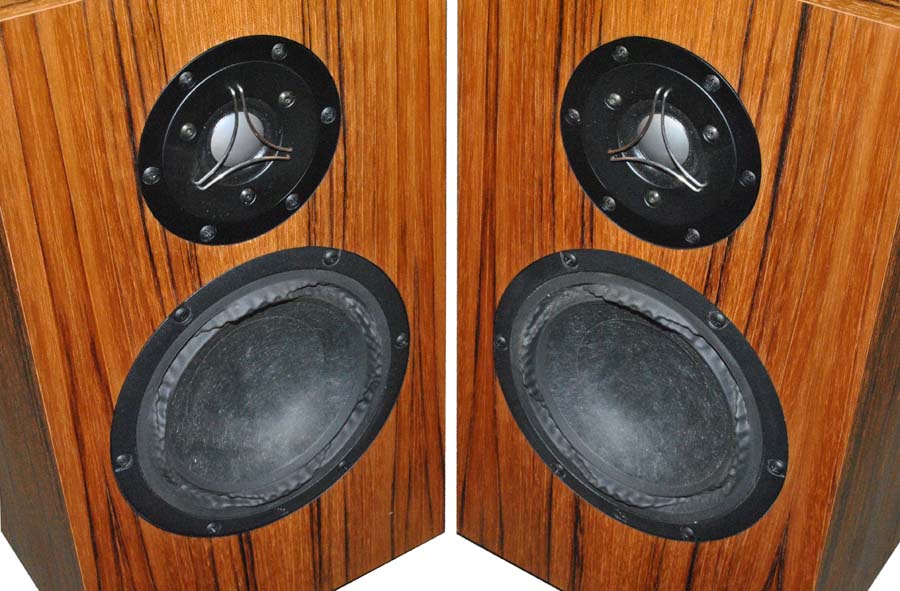

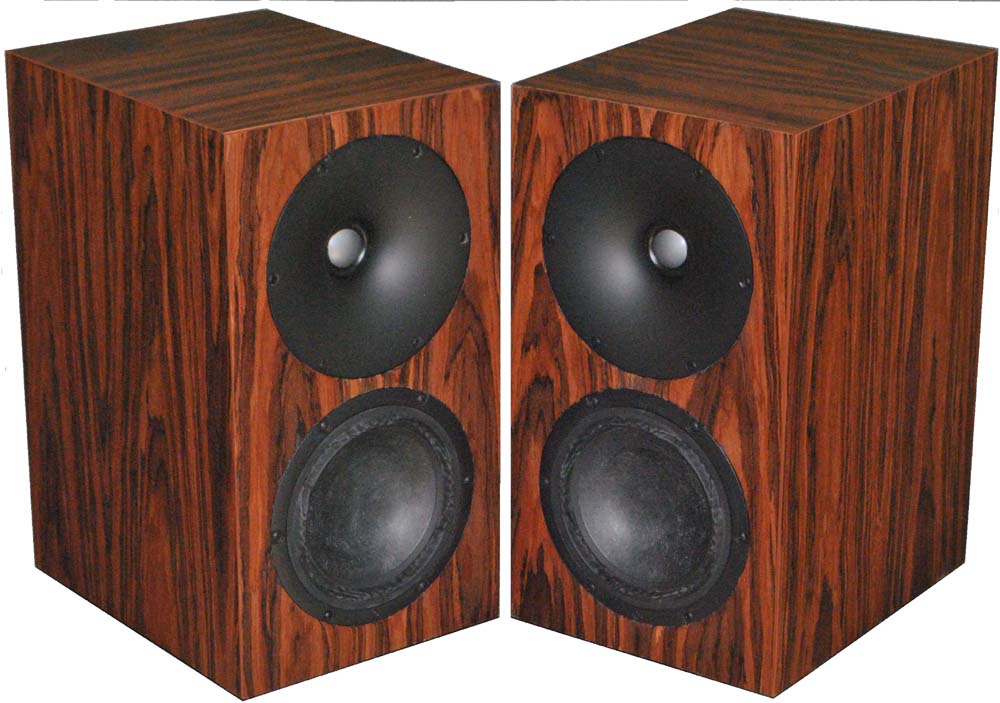

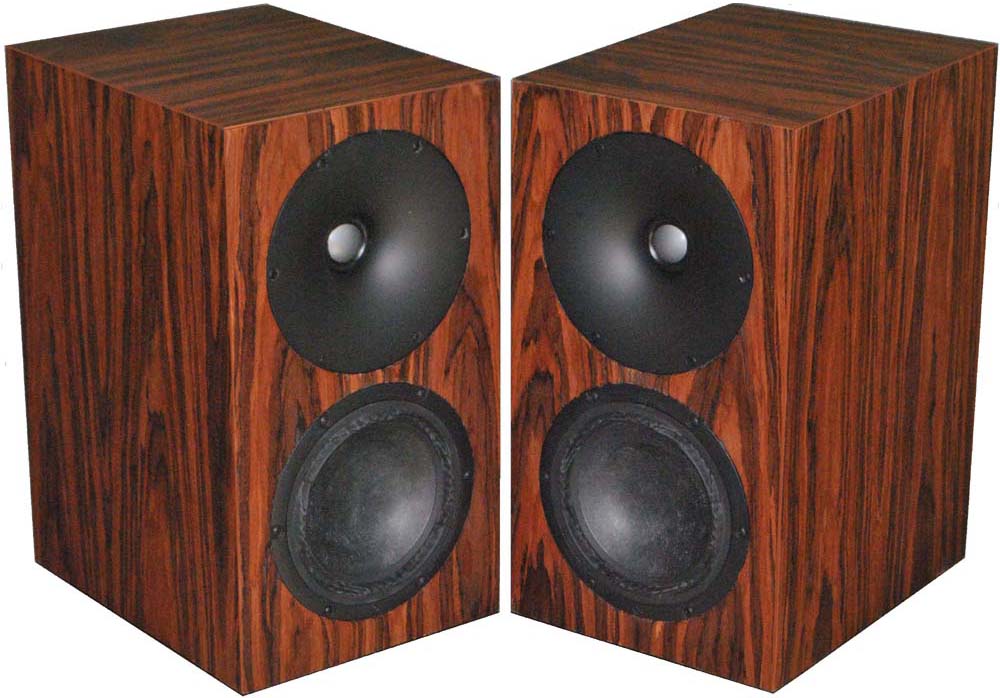

2 Way vented stand mounted monitor



2 Way vented stand mounted monitor


Frequency Response:

36Hz-40Khz +/- 3 db


8 Ohms nominal


87 db (1 Watt, 2.83 V @ 1 Meter)

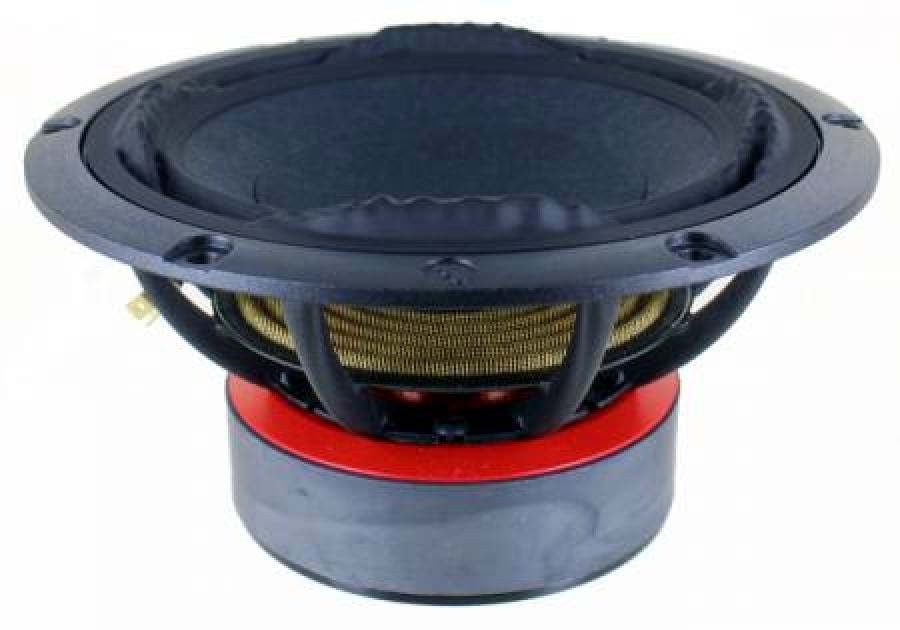

Bass/Midrange Driver:

The Purifi Audio PTT6.5X08-NFA-01 6.5" Woofer - 8 ohm is a 6.5” driver that truly cracks the long-stroke code. PURIFI’s research has identified the parameters that have so far prevented long stroke drivers from breaking through in truly high performance audio. The distortion of the acoustic output of a driver is a combination of several separate distortion mechanisms in the motor, cone and suspension. When testing a complete driver with sine waves, a situation often arises where a small tweak seemingly improves harmonic distortion (HD) by letting two mechanisms counteract each other. This always leads to a clear worsening of intermodulation distortion (IMD) that becomes obvious when testing the unit with a more complex signal. This is why traditional HD tests fail to predict subjective sound quality.

PURIFI takes care to optimize the various distortion mechanisms separately, thus guaranteeing that any measured improvement truly reflects a real audible improvement no matter what the signal is. Accurate mathematical models are developed for the motor, suspension and the vibroacoustics of the dome and surround. These models clearly explain several distortion mechanisms in each domain, which provides fundamental insights into better ways of constructing the motor, cone and suspension. Finally, the same models are used to numerically fine-tune the geometry. This way of working reliably reduces multiple distortions mechanisms which secures low IMD for complex signals.

Low Force Factor Modulation: Prevents voice coil current from modulating Force Factor (Bl). The PURIFI motor completely avoids this classical Achilles’ heel of long stroke drivers. This translates into low intermodulation (IMD): clean, undistorted midrange even in the presence of a heavy bass. Equates to low impedance modulation, meaning that drive current is not distorted by cone motion.

Very Constant Force Factor over Excursion: Prevents voice coil position from modulating the force factor. This is the classical cause of “burbling” i.e. amplitude modulation of the midrange by large low-frequency cone excursions.

Low Surround Radiation Distortion: The surround contributes to sound output. Conventional surrounds produce distortion as they deform. PURIFI’s Neutral Surround geometry avoids this mechanism without constraining motion. This reduces harmonic distortion as well as intermodulation distortion.

Low Magnetic Hysteresis Distortion: Hysteresis means that magnetic domains in iron retain traces of previous magnetization / demagnetization cycles which cause distortion when magnetized or demagnetized again. This distortion masquerades as benign harmonic distortion when tested with a sine wave but takes on a crackling or noisy character with more complex signals. Removing hysteresis distortion translates into a very “fluid” presentation with excellent front/back separation in the stereo image and a perfectly black background between instruments.

Cleaner than large-cone short-stroke drivers: The combination of the above characteristics results in a compact long-stroke driver that delivers complex sound with a clarity and lack of effort that was previously the exclusive province of large-cone short-stroke drivers. Additionally, thanks to the small cone size, the driver has excellent midrange reproduction. It is highly suited for two-way systems.

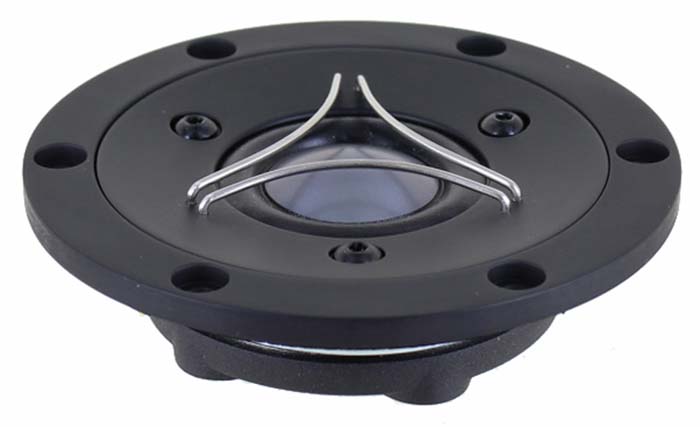

SB Acoustics Satori Beryllium dome Tweeter

  • Beryllium dome for non-resonant high frequency extension
  • Two part aluminium faceplate with integrated mechanical decoupling
  • Dual balanced compression chambers for improved dynamics
  • Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
  • High saturation neodymium motor system with T-shaped pole piece for lower distortion
  • Non-reflective cast aluminium chamber with optimized damping for improved dynamics
  • Shallow flow optimized magnet structure for optimum coupling to rear chamber
  • CCAW voice coil for low moving mass
  • Long life silver lead wires
  • Low resonance frequency for extended range


Series crossover without any capacitors or resistors in the circuit with the tweeter. Acoustic Reality Series Crossovers


16H x 9W x 12D, 30 lbs (each)

Recommended Power:

40 - 150 Watts RMS, without clipping
