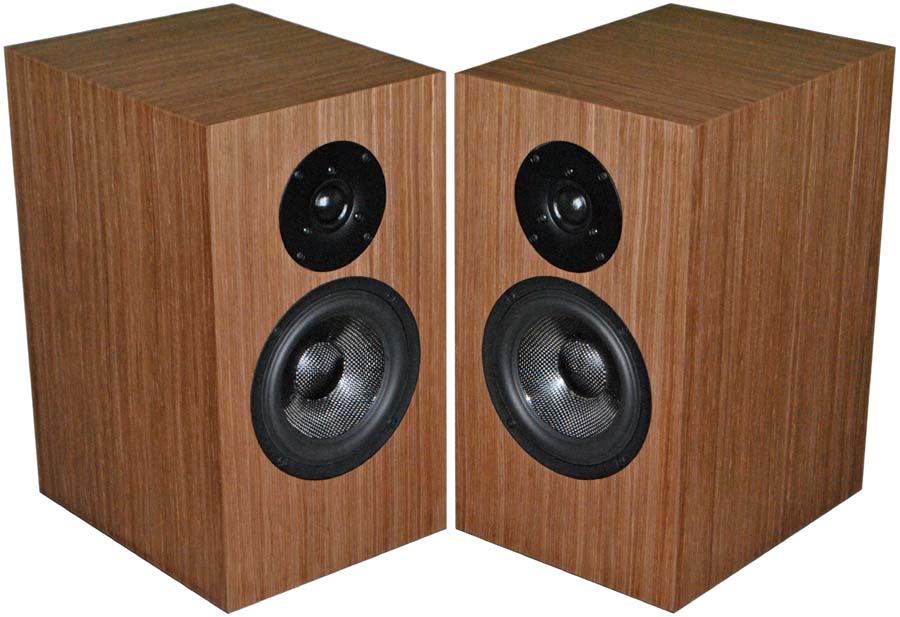

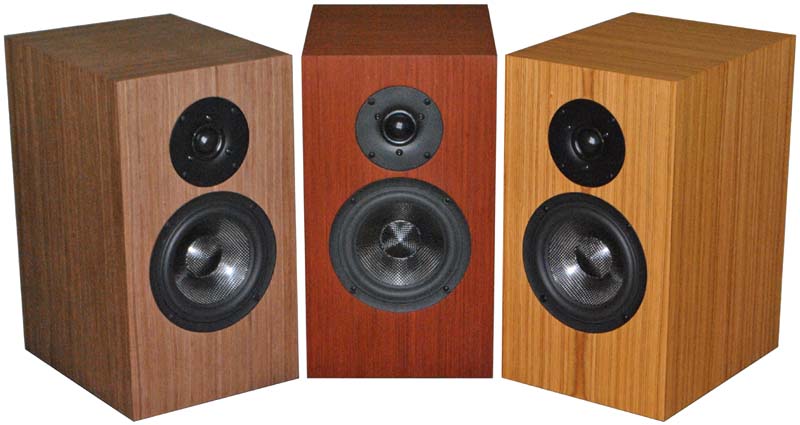

FRITZ CARBON 6
2 Way stand mounted monitor

Frequency Response:

40Hz-30Khz +/- 3 db

Impedance:

8 Ohms nominal

Sensitivity:

88 db (1 Watt, 2.83 V @ 1 Meter)

Bass/Midrange Driver:

SB Acoustics 6" Woven Carbon Fiber Cone Woofer

Rohacell®/Carbon fibre sandwich cone for optimized stiffness/damping ratio
Vented cast aluminum chassis for optimum strength and low compression
Low damping rubber surround for improved transient response
Non-conducting fibre glass voice coil former for minimum damping
Extended copper sleeve on pole piece for low inductance and low distortion
CCAW voice coil for reduced moving mass
Long life silver lead wires
Vented pole piece for reduced compression

Tweeter:

SB Acoustics 29mm textile dome tweeter

Large surround dome for increased acoustic output
Dual balanced compression chamber for improved dynamics
Copper cap for reduced voice coil inductance and minimum phase shift
Saturation controlled motor system for low distortion
Non-reflective rear chamber with optimized damping for improved dynamics
Flow optimized vented pole piece for optimum coupling to rear chamber
CCAW voice coil for low moving mass
Long life silver lead wires
Low resonance frequency
Cast aluminium faceplate

Crossover:

Series crossover without any capacitors or resistors in the circuit with the tweeter
Acoustic Reality Series Crossovers

Dimensions/Weight:

16H x 9W x 12D, 26 lbs (each)

Recommended Power:

30-150 Watts RMS, without clipping
