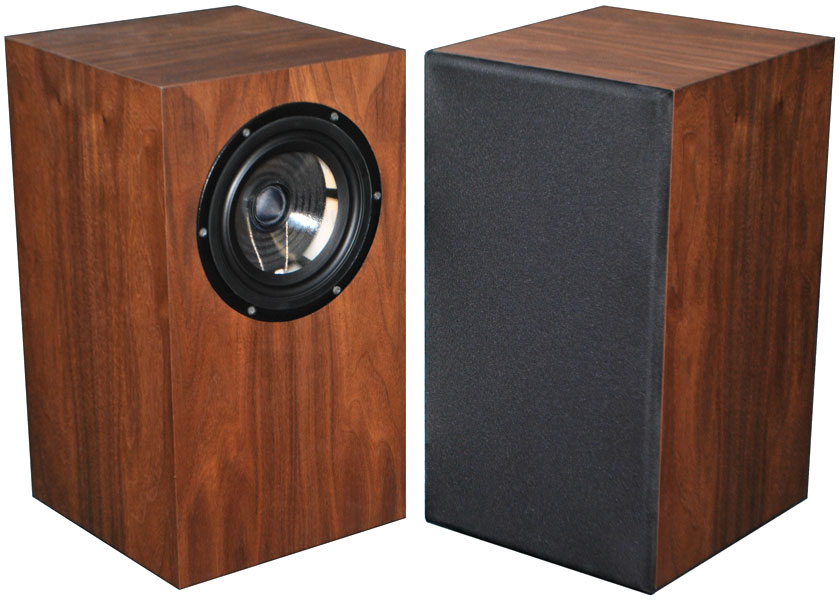

2 Way vented Coaxial stand mounted monitor

Frequency Response:



8 Ohms nominal


88.5 db (1 Watt, 2.83 V @ 1 Meter)

Bass/Midrange Driver:

This Seas driver has a PP/TPX based cone that matches ideally with an adaptive rubber surround. The result is an outstandingly smooth frequency response from the mid woofer. A coaxially arranged pre-coated fabric dome high frequency unit with a low resonance frequency, integrates with the cone driver to a point source. The cone of the woofer acts as a horn loading for the tweeter, and the chassis of the dome unit represents the throat of this horn.


1 inch fabric dome coaxially mounted in the center of the mid/bass driver


Series crossover without any capacitors or resistors in the circuit with the tweeter. Acoustic Reality Series Crossovers


16H x 9W x 9 1/2D, 25 lbs (each)

Recommended Power:

40 - 100 Watts RMS, without clipping

For more information or to arrange a home audition call 310-379-8190
